Infinium Edge 160 Electrosurgical Generator
- Brand
- : Infinium
- SKU
- : 000.928.0003
- UPC
- :
- Condition
- : New
Infinium Edge 160 Electrosurgical Generator
The Infinium Edge 160 Electrosurgical Generator is a high-frequency electrosurgical generator (ESU) ideal for monopolar and bipolar veterinary surgery procedures. The system is engineered to execute minimally invasive surgical procedures with resection, evaporation, and coagulation.
- Pure CUT
- Cut-Coagulation BLEND
- Superficial Coagulation – FORCED COAG
- Deep Coagulation – SOFT COAG
- Optional – BIPOLAR Coagulation.
Safety
The EDGE 160 allows for professional surgery thanks to advanced, user-friendly, and safety solutions. The connection of the split neutral electrode and plate is automatically monitored for patient safety. For ease of use and focus, power output can be adjusted from the hand control to allow surgeons to have a continuous focus on the surgical field.
EDGE 160 Features
- Plate and power monitoring & control
- Split return electrode use
- Minimally invasive surgical treatments
- Optional bipolar forceps configuration
- Auto start/stop in bipolar coag
- Saves last used setting
- Monopolar activation with handle and/or pedal
- Digital power regulation and output indicator
- Sound level controls
Target Procedures
- Veterinary & Animal Health
- Vascular Surgery
- Dermatology
- Gynecology
- Otorhinolaryngology
- Orthopedics
- Trauma
- Endoscopy
Included Accessories
The EDGE 160 Comes Stand With
- Reusable monopolar handle
- Assorted electrodes (10pc)
- Rod neutral electrode (2pc)
- Cable for rod neutral electrode
- Waterproof foot switch
- Power supply cable 2 mt
- Electrode and handle support
Technical Specifications:
- Max Output Power CUT : 160W – 250Ω
- Max Output Power ENHANCED : 120W – 250Ω
- Max Output Power BLEND : 120W – 200Ω
- Max Output Power FORCED COAG : 100W – 150Ω
- Max Output Power SOFT COAG : 80W – 100Ω
- Max Output Power BIPOLAR COAG : 60W – 100Ω
- Working Frequency : 600 KHz
- Patient Circuit : F
- Mains Voltage : 115-230 Vac
- Mains Frequency : 50-60 Hz
- Electrical Input Power : 350 VA
- Size WxHxD : 254x104x288 Mm
- Weight : 5 Kgs

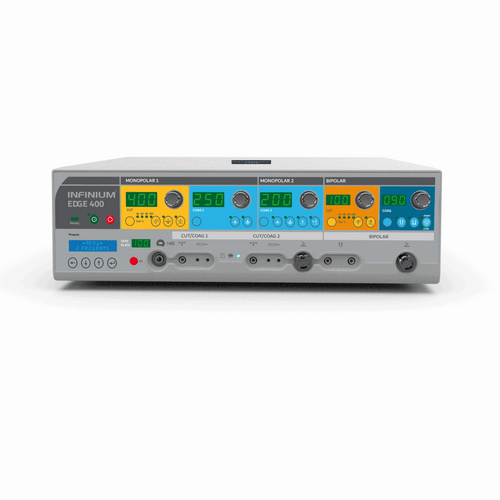

InfiniumInfinium Edge 400 ElectrosuInfinium Edge 400 Electrosurgical Generator ( ESU )rgical Generator ( ESU )

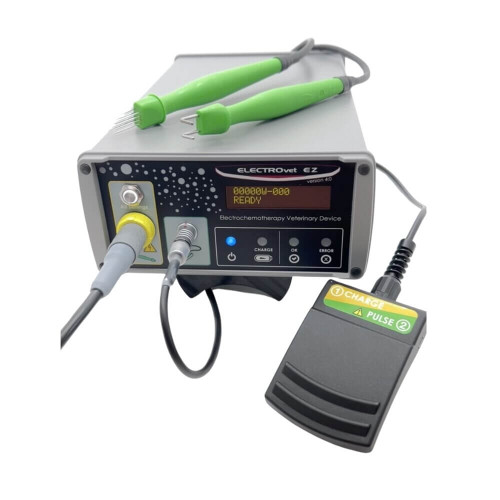

Infinium ElectroVet EZ Veterinary Electrochemotherapy Generator
